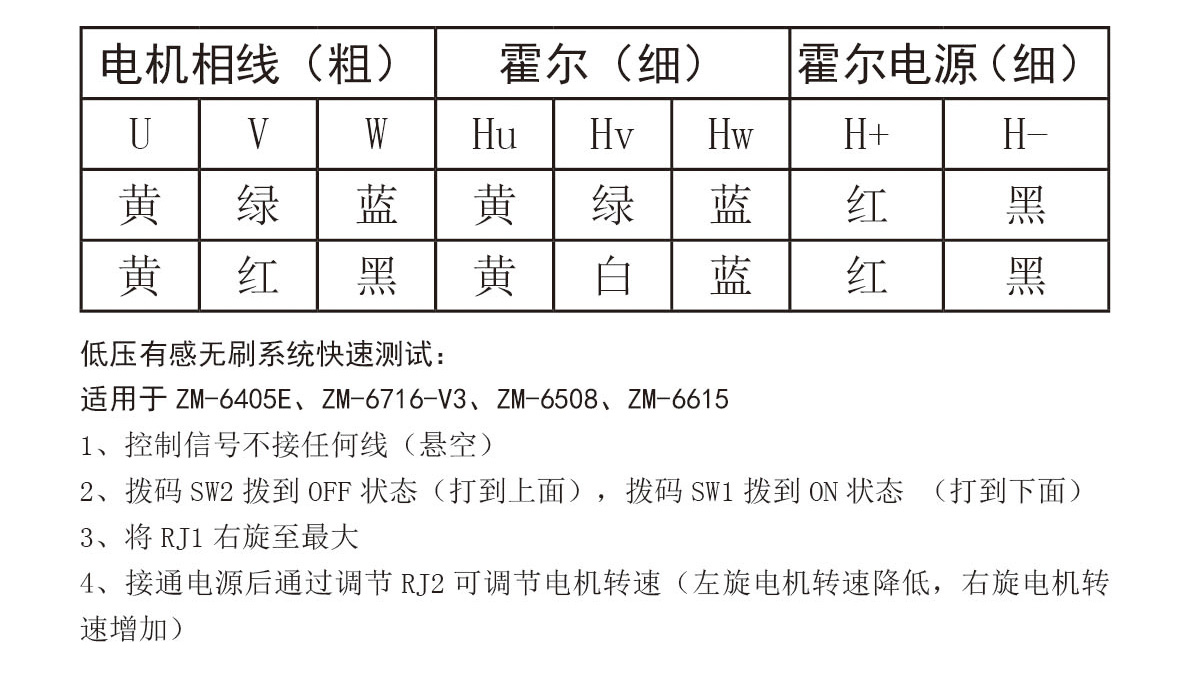

注意：棕色线不用接！
型号
| 额定电压
VDC | 额定电流
A | 额定功率
W | 额定转速
RPM | 额定转矩
N.M | 轴颈
mm | 适配驱动器
| | 42BL50S03-230TR0 | 24 | 1.6 | 30 | 3000 | 0.1 | 5 | ZM-6405 ZM-6405E ZM-6508 | | 42BL60S06-230TR0 | 24 | 3.1 | 60 | 3000 | 0.2 | 5 | ZM-6405 ZM-6405E ZM-6508 | | 42BL80S09-230TR0 | 24 | 4.7 | 90 | 3000 | 0.3 | 5 | ZM-6405 ZM-6405E ZM-6508 | | 57BL55S02-212TF0 | 24 | 1.1 | 22 | 1200 | 0.15 | 8 | ZM-6405 ZM-6405E ZM-6508 | | 57BL55S06-230TF0 | 24 | 3.1 | 60 | 3000 | 0.18 | 8 | ZM-6405 ZM-6405E ZM-6508 | | 57BL75S10-225TF0 | 24 | 5.2 | 100 | 2500 | 0.4 | 8 | ZM-6405 ZM-6405E ZM-6508 | | 57BL75S10-230TF0 | 24 | 5.2 | 100 | 3000 | 0.4 | 8 | ZM-6405 ZM-6405E ZM-6508 | | 57BL75S15-336TF0 | 36 | 5.2 | 145 | 3600 | 0.4 | 8 | ZM-6405 ZM-6405E ZM-6508 | | 57BL95S06-210TF0 | 24 | 3.1 | 60 | 1000 | 0.6 | 8 | ZM-6405 ZM-6405E ZM-6508 | | 57BL95S18-230TF0 | 24 | 9.3 | 180 | 3000 | 0.6 | 8 | ZM-6508 ZM-6615 | | 57BL110S21-230TF0 | 24 | 11 | 210 | 3000 | 0.7 | 8 | ZM-6615 | | 57BL110S30-3150TF0 | 310 | 1.2 | 300 | 5000 | 0.7 | 8 | ZM-7202 | | 57BL112R18-332TF0 | 36 | 6.2 | 180 | 3200 | 0.54 | 8 | ZM-6508 ZM-6615 | | 57BL112R18-230TF0 | 24 | 9.3 | 180 | 3000 | 0.6 | 8 | ZM-6615 | | 57BL114R30-446TR0 | 48 | 7.8 | 300 | 4600 | 0.6 | 8 | ZM-6508 ZM-6615 | | 57BL112R18-232TF0 | 24 | 9.4 | 180 | 3200 | 0.54 | 8 | ZM-6615 | | 57BL112R15-340DF0 | 36 | 5.2 | 150 | 4000 | 0.36 | 8 | ZM-6508 ZM-6615 | | 60BL100S08-215TF0 | 24 | 4.1 | 80 | 1500 | 0.5 | 8 | ZM-6405 ZM-6405E ZM-6508 | | 60BL100S15-230TF0 | 24 | 7.8 | 150 | 3000 | 0.5 | 8 | ZM-6508 ZM-6615 | | 60BL100S15-230TF0B | 24 | 7.8 | 150 | 3000 | 0.5 | 8 | ZM-6508 ZM-6615 | | 60BL100S15-330TF0 | 36 | 5.2 | 150 | 3000 | 0.5 | 8 | ZM-6508 ZM-6615 | | 60BL120S25-430TF0 | 48 | 6.5 | 250 | 3000 | 0.75 | 14 | ZM-6508 ZM-6615 | | 60BL120S25-3130TF0 | 310 | 1 | 250 | 3000 | 0.75 | 14 | zm-7202 | | 60BL80S05-220TC0 | 24 | 2.6 | 50 | 2000 |
|
| ZM-6405 ZM-6405E ZM-6508 | | 80BL130S35-330TK0 | 36 | 12 | 350 | 3000 | 1.2 | 14 | ZM-6615 | | 80BL145S55-445TK0 | 48 | 15 | 550 | 4500 | 1.2 | 14 | ZM-6615 | | 80BL145S55-3130TK0 | 310 | 2.2 | 550 | 3000 | 1.6 | 14 | ZM-7206 | | 80BL165S55-3115TK0 | 310 | 2.2 | 550 | 1500 | 3.5 | 14 | ZM-7206 | | 80BL148S75-3130TK0 | 310 | 3 | 750 | 3000 | 2.5 | 14 | ZM-7206 | | 80BL180S120-3140TK0 | 310 | 4.8 | 1200 | 4000 | 3 | 14 | ZM-7206 | | 80BL89S25-430TK0 | 48 | 6.5 | 250 | 3000 | 0.7 | 14 | ZM-6508 ZM-6615 | | 80BL89S40-430TK0 | 48 | 10 | 400 | 3000 | 1.2 | 14 | ZM-6615 | | 80BL89S40-445TK0 | 48 | 10 | 400 | 4500 | 0.9 | 14 | ZM-6615 | | 80BL89S50-445TK0 | 48 | 15 | 500 | 4500 | 1.2 | 14 | ZM-6615 | | 80BL116S50-430TK0 | 48 | 15 | 500 | 3000 | 1.6 | 14 | ZM-6615 | | 57BL55S06-230TF9 | 24 | 2.9 | 60 | 3000 | 0.16 | 8 | ZM-6405 ZM-6405E ZM-6508 | | 57BL75S10-230TF9 | 24 | 5.3 | 100 | 3000 | 0.3 | 8 | ZM-6508 ZM-6615 | | 57BL95S06-210TF9 | 24 | 2.9 | 60 | 3000 | 0.57 | 8 | ZM-6405 ZM-6405E ZM-6508 | | 57BL95S15-230TF9 | 24 | 8 | 150 | 3000 | 0.47 | 8 | ZM-6508 ZM-6615 |

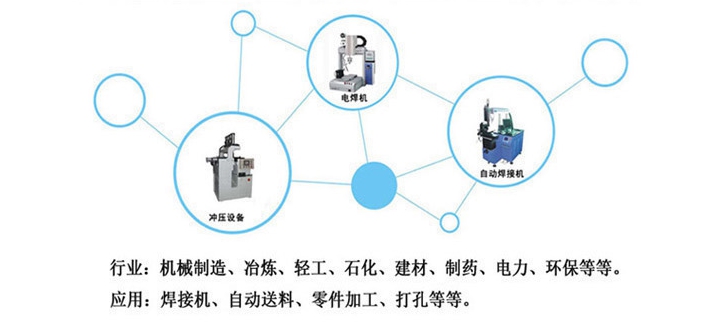

·应用领域
· 以上为本款产品的基本介绍，如需详细了解更多多样化创意搭配以及购买请联系下方联系方式 ·厂家直销 根据您的实际情况可否需要特殊规格特殊规格的步进电机，请和我们沟通，在技术允许的范围内，加工订货。例如，出轴的直径、长短、伸出方向、相线（编码器线）长度等。如购买配套设置可免费给您组装调试好！ 联系人：李先生 电话：18010107283 QQ：2223199877 微信：shidaichaoqun 淘宝店铺：https://shop114114198.taobao.com/index.htm?spm=2013.1.w5002-16614260111.2.ZPGxYs
|
