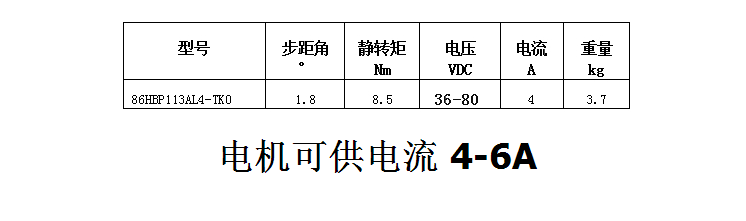

型号
Model | 相数
Phase | 步距角
Step Angle | 静转矩
Torque
(Nm) | 电流
Current
(A) | 相电阻
Resistance
(Ω) | 相电感
Inductance
(mH) | 机身长
Length
(mm) | 孔距
Hole Dist.
(mm) | 出轴长
Shaft L
(mm) | 轴径
Shaft D
(mm) | 轴处理
Shaft | | 86HBP65AL4-TF0 | 2 | 1.8° | 2.8 | 3.0 | 0.58 | 3.35 | 65 | 70 | 32 | 12 | 扁 | | 86HBS80AL4-DK0 | 2 | 1.8° | 4.0 | 4.0 | 1.3 | 8.1 | 80 | 70 | 36/21 | 14/14 | 键/扁 | | 86HBS80AL4-TK0 | 2 | 1.8° | 4.0 | 4.0 | 1. | 8.1 | 80 | 70 | 36 | 14 | 键*5 | | 86HBP98AL4-TK0 | 2 | 1.8° | 7.5 | 4.0 | 0.5 | 7.4 | 98 | 70 | 36 | 14 | 键*5 | | 86HBP98AL4-TK0B | 2 | 1.8° | 7.5 | 4.0 | 0.5 | 7.4 | 98 | 70 | 36 | 14 | 键*5 | | 86HBP113AL4-TK0 | 2 | 1.8° | 8.5 | 4.0 | 0.6 | 11.0 | 113 | 70 | 36 | 14 | 键*5 | | 86HBP113AL4-DK0 | 2 | 1.8° | 8.5 | 4.0 | 0.6 | 11.0 | 113 | 70 | 36/21 | 14/14 | 键/扁 | | 86HBP113AL4-TK0B | 2 | 1.8° | 8.5 | 4.0 | 0.6 | 11.0 | 113 | 70 | 36 | 14 | 键*5 | | 86HBP150AL4-TK0 | 2 | 1.8° | 12.0 | 4.4 | 0.84 | 9.7 | 150 | 70 | 36 | 14 | 键*5 | | 86HBP150AL4-DK0 | 2 | 1.8° | 12.0 | 4.4 | 0.8 | 9.7 | 150 | 70 | 36/21 | 14/14 | 键/扁 | | 86HBP150AL4-TK0B | 2 | 1.8° | 12.0 | 4.4 | 0.84 | 9.7 | 150 | 70 | 36 | 14 | 键*5 | | 86HCY65AL3-TR0 | 3 | 1.2° | 2.0 | 3.0 | 0.2 | 1.6 | 65 | 70 | 30 | 12 | 圆 | | 86HCY98AL3-TR0 | 3 | 1.2° | 4.5 | 5.2 | 0.5 | 3.0 | 98 | 70 | 36 | 14 | 圆 | | 86HCY113AL3-TK0 | 3 | 1.2° | 6.0 | 5.2 | 0.4 | 5.9 | 113 | 70 | 36 | 14 | 键*4 | | 86HCY150AL3-TK0 | 3 | 1.2° | 7.0 | 5.0 | 1.0 | 5.9 | 150 | 70 | 36 | 14 | 键*4 |

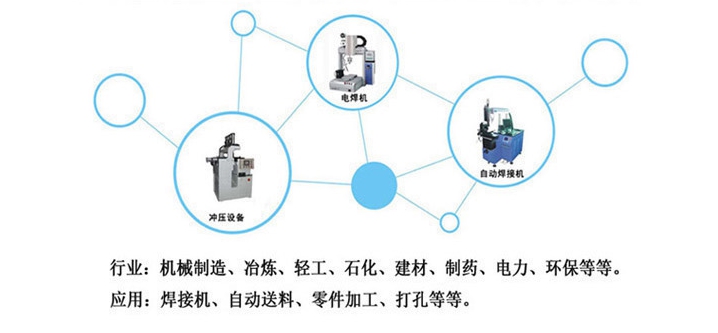

·应用领域
· 以上为本款产品的基本介绍，如需详细了解更多多样化创意搭配以及购买请联系下方联系方式 ·厂家直销 根据您的实际情况可否需要特殊规格特殊规格的步进电机，请和我们沟通，在技术允许的范围内，加工订货。例如，出轴的直径、长短、伸出方向、相线（编码器线）长度等。如购买配套设置可免费给您组装调试好！ 联系人：李先生 电话：18010107283 QQ：2223199877 微信：shidaichaoqun 淘宝店铺：https://shop114114198.taobao.com/index.htm?spm=2013.1.w5002-16614260111.2.ZPGxYs
|
