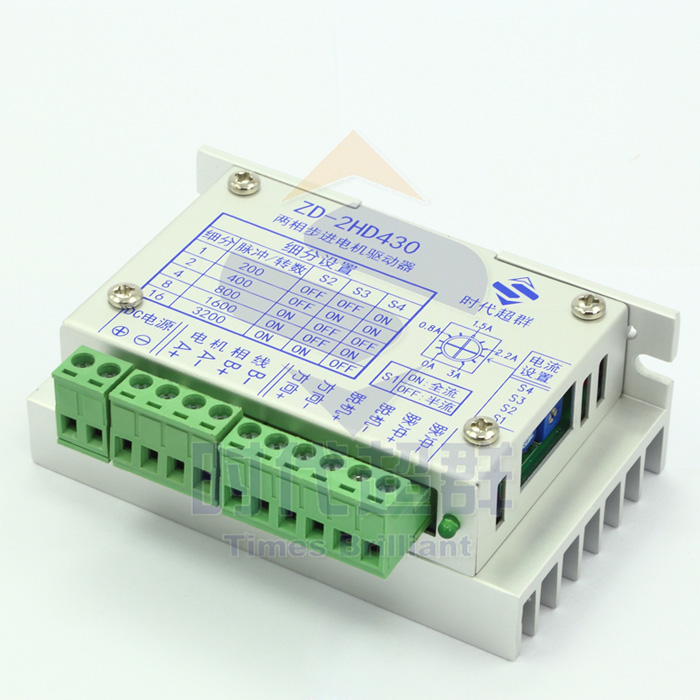

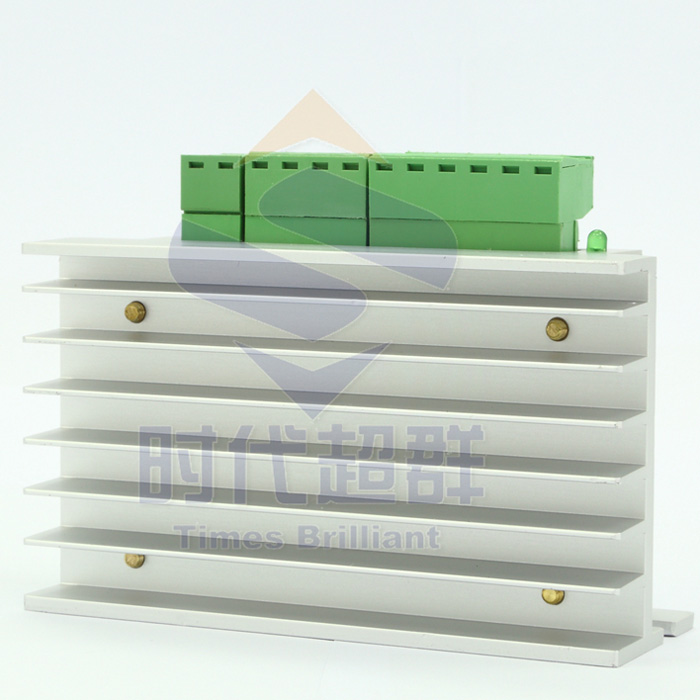

| 基于TB6600芯片制作42/57步进电机驱动器ZD-2HD430（SSZ） |
| |
| |

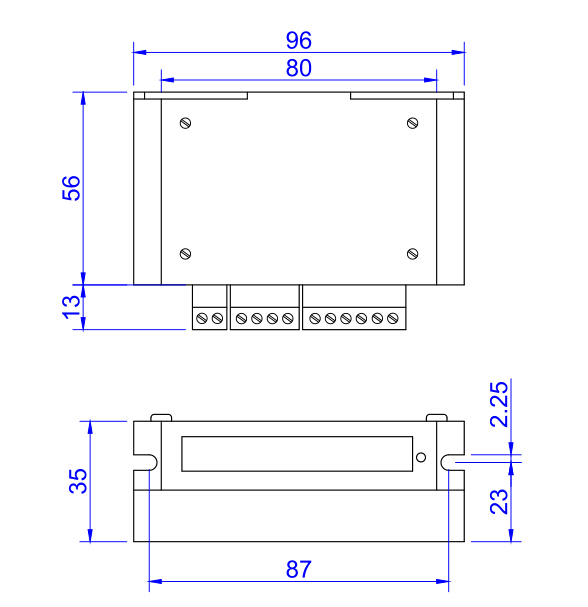

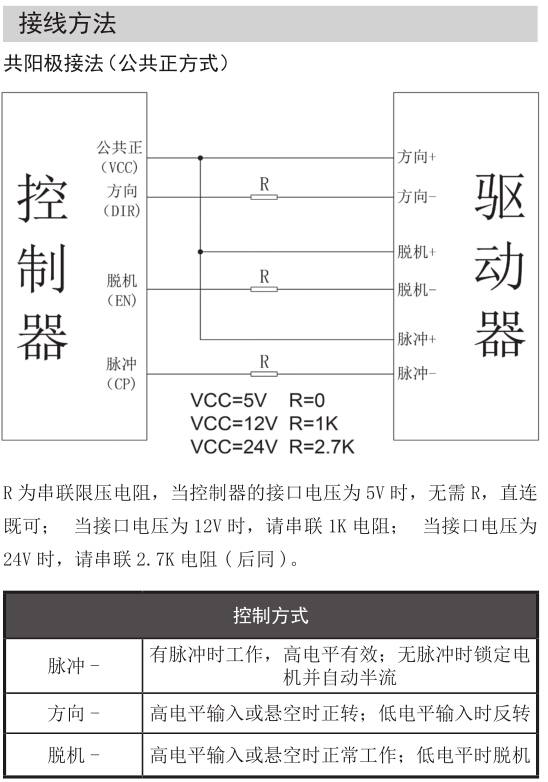

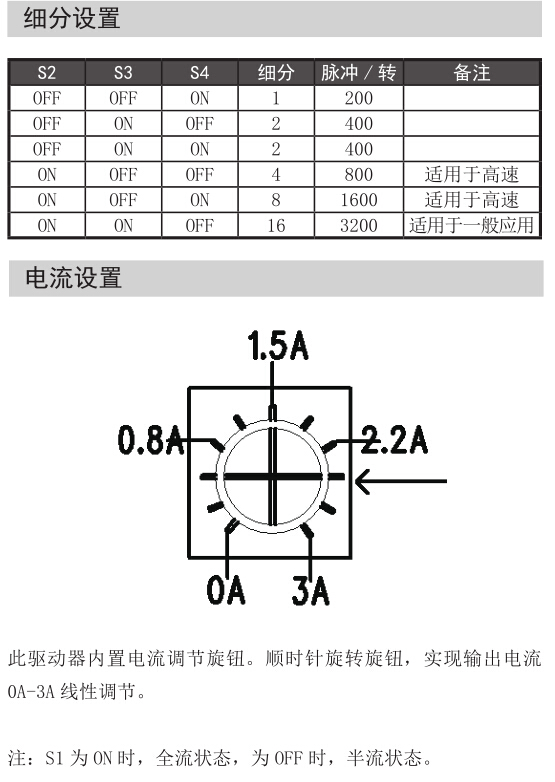

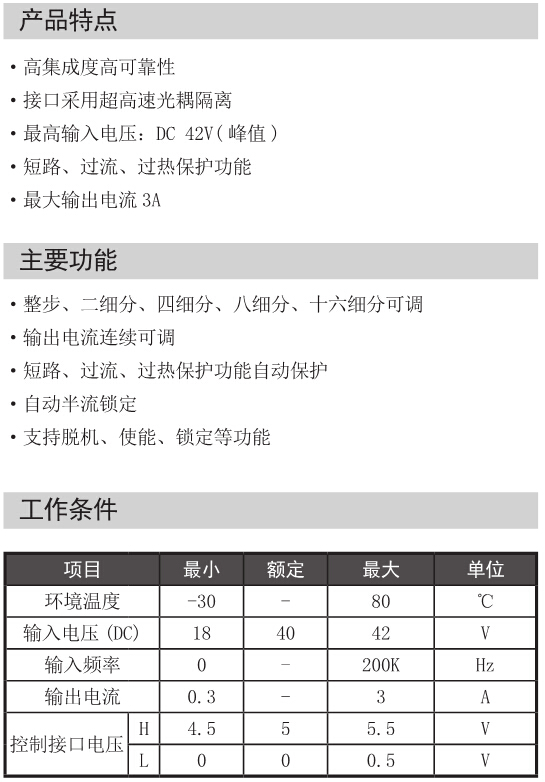

驱动器尺寸图
可配套电机型号参数 型号
Model | 老型号
old Model | 相数
Phase | 步距角
Step Angle | 静转矩
Torque
(Nm) | 电流
Current
(A) | 相电阻
Resistance
(Ω) | 相电感
Inductance
(mH) | 绕组
Coil | | 57HBS50BJ4-TR0 | 57BYG250-50 | 2 | 1.8° | 0.7 | 0.6 | 12.3 | 40.0 | 串联 | | 57HBS51AL4-TF0 | 57BYG250-51 | 2 | 1.8° | 0.7 | 0.6 | 14 | 25 | 串联 | | 57HBP56AL4-TF0 | 57BYG250-56 | 2 | 1.8° | 0.9 | 2.0 | 1.2 | 4.5 | 并联 | | 57HBP56AL4-TF1 | 57BYG250-56-8 | 2 | 1.8° | 0.9 | 2.0 | 1.2 | 4.5 | 并联 | | 57HBP56AL4-TF2 | 57BYG250-56加长轴 | 2 | 1.8° | 0.9 | 2.0 | 1.2 | 4.5 | 并联 | | 57HBP56AL4-TF3 | 57BYG250-56(0.8Ω) | 2 | 1.8° | 0.9 | 2.0 | 0.8 | 4.5 | 并联 | | 57HBP56AL4-DF0 | 57BYG250-56双 | 2 | 1.8° | 0.9 | 2.0 | 0.8 | 4.5 | 并联 | | 57HBP76AL4-TF0 | 57BYG250-76 | 2 | 1.8° | 1.5 | 3.0 | 0.6 | 10.5 | 并联 | | 57HBS76AL4-TF0 | 57BYG250-76（串） | 2 | 1.8° | 1.5 | 3.0 | 0.6 | 10.5 | 串联 | | 57HBP76AL4-TF1 | 57BYG250-76-8 | 2 | 1.8° | 1.5 | 3.0 | 0.6 | 10.5 | 并联 | | 57HBP76AL4-DF0 | 57BYG250-76双 | 2 | 1.8° | 1.5 | 3.0 | 0.6 | 10.5 | 并联 | | 57HBP80AL4-TK0 | 57BYG250-80 | 2 | 1.8° | 2.0 | 3.0 | 0.6 | 10.5 | 并联 | | 57HBP102AL4-TF0 | 57BYG250-102 | 2 | 1.8° | 2.2 | 3.0 | 0.8 | 3.1 | 并联 | | 57HBP112AL4-TF0 | 57BYG250-112 | 2 | 1.8° | 2.4 | 3.0 | 0.9 | 3.8 | 并联 | | 57HBN76AL8-TF0 | 57BYG450-76 | 2 | 1.8° | 1.5 | 3.0 | 1.2 | 10.5 | -
|
